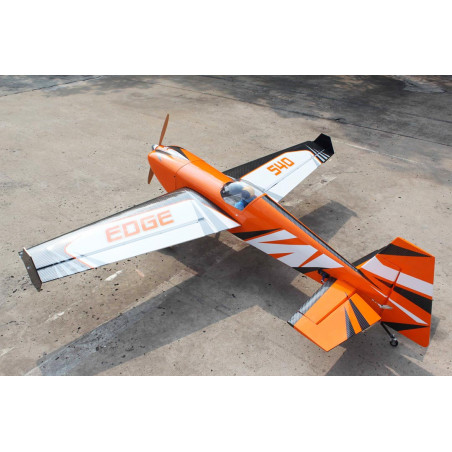

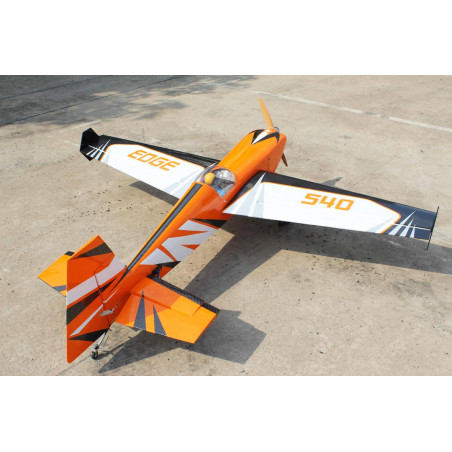

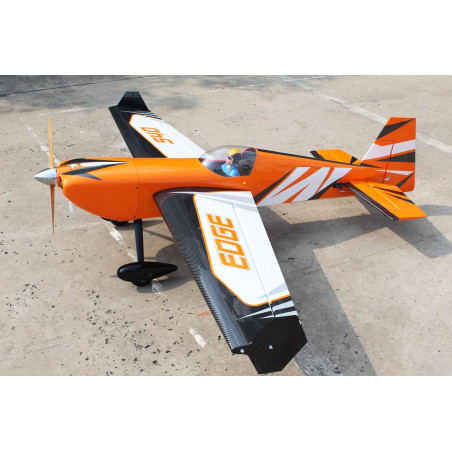

Thermal radio controlled plane EDGE 540 35-40cc 3D version ARF

EDGE 540 35-40cc 3D version ARF

3D 2023 version, with carbon fiber accessories and structural reinforcements

• New version of the EDGE 540 with balsa / plywood / carbon fiber structure
• New decoration with imitation carbon film for a better effect
• Larger access hatch to facilitate radio installation inside the fuselage
• New pre-installed cylindrical hinges

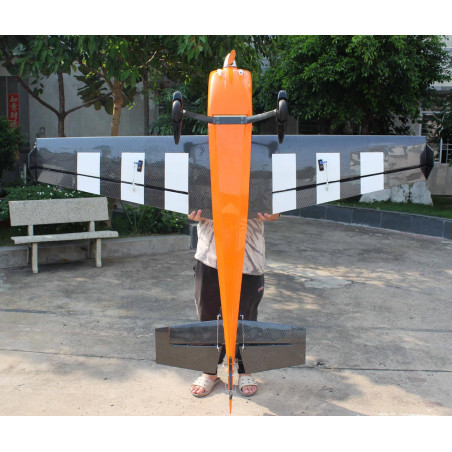

• 2-piece wing and removable stabilizer for easy transport

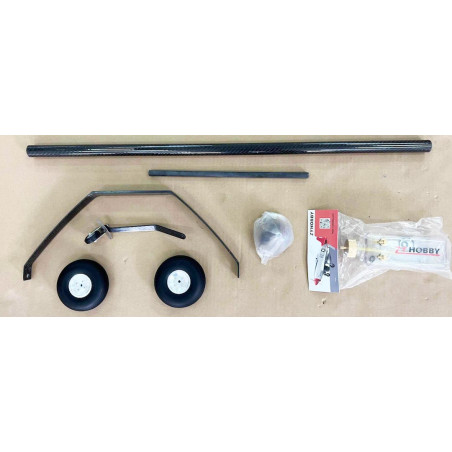

• Carbon fiber wing and stabilizer key
• Carbon fiber landing gear
• Wheels with CNC machined aluminum hubs
• Aluminum cone included
• Fiberglass horns

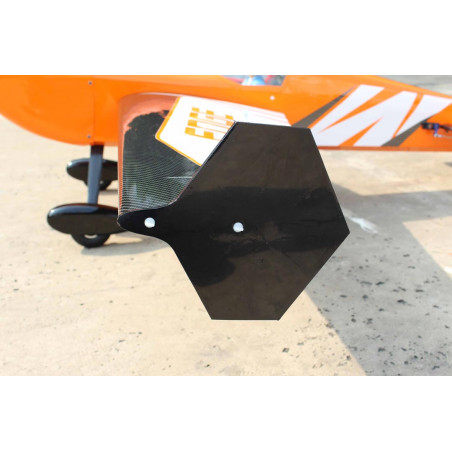

• Lateral force generators (SFG) included

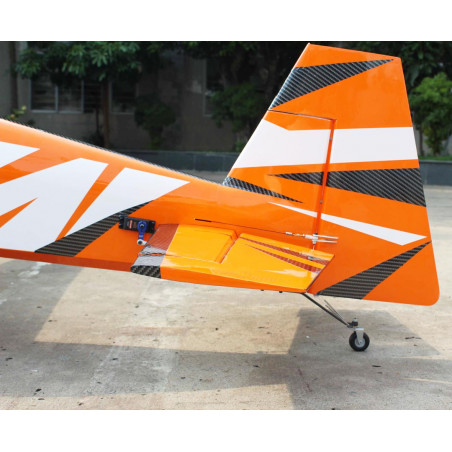

• Increased surface area of ailerons and elevator

Technical specifications

• Wingspan: 1.97m
• Length : 1,79m
• Wing area: 66dm2
• Weight: Approximately 5.3kg
• Designed for 30 to 40cc engine (or equivalent electric)

Required elements :

• Radio : 06 channels minimum.
• Servo : 06 servos (HV High torque steel gear servo).
• Receiver and ignition battery : 6-7.4V/ 2200-3000mAh.
• Engine: 30 to 40cc
• Propeller : Adapted to the motor.

Recommended configuration for electric motorization:

• Motor: class 160 / 2700W
• Controller: 120A
• Battery Li-Po 9 to 10S
